Lithium Battery Lithium Iron Phosphate Square Aluminum Shell EIKTO
Powerful Energy Storage Iron Module
Technical Parameters
| NO. | Item | Specification | Remark |
| 1 | Dimension | 476.2mm*427.6mm*356.22mm | / |
| 2 | Combination mode | 1P30S 2P15S 3P10S | / |
| 3 | Rated Capacity | 135Ah/270Ah/405Ah | 25±2℃,1.0C |
| 4 | Nominal Voltage | 96/48/32V | / |
| 5 | insulation resistance | ≧50MΩ(DC1000V) | 25±2℃ |
| 6 | Module Weight | ≈130kg | / |
| 7 | Module energy | 12.960kwh | / |
| 8 | Max Charging Voltage | 108/54/36V | / |
| 9 | Maximum Continuous Charging Current | 1C | 25±5℃ |
| 10 | Discharge Cut-off Voltage | 75/37.5/25V | / |
| 11 | Max. Continuous Discharging Current | 1C | 25±5℃ |
| 12 | Standard cycle life | ≥4000 times 80%Capacity retention | 1C/1C 25℃ |
Product Description
Lithium battery Lithium iron phosphate Iron Module 3.2V135AH square aluminum shell Heating system

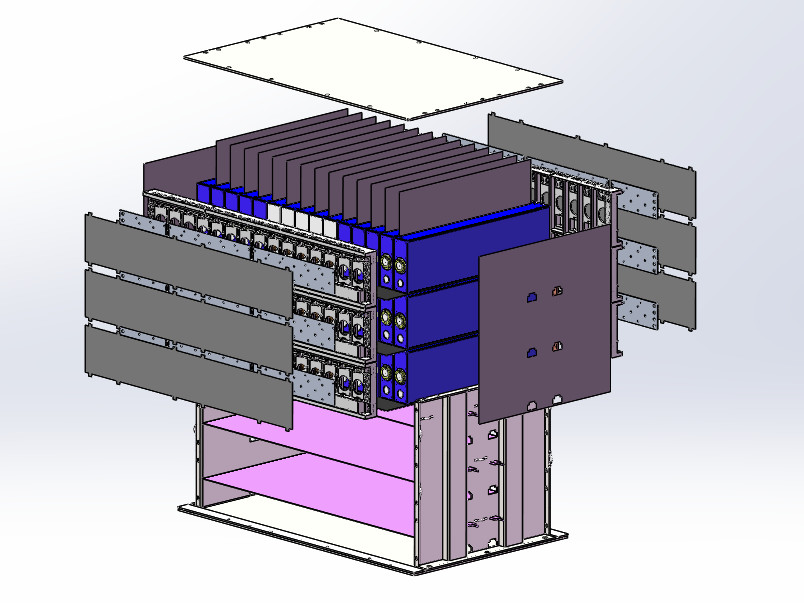

This product is the standard module of EIKTO 30-core lithium iron
phosphate battery, which is formed by series and parallel
connection of YJT40110413-135AH lithium iron phosphate battery.
Laser welding is carried out between the cells using Iron
connecting pieces. The Iron material is used as envelop to
stabilize the module, which has high structural strength. The
module can be equipped with a battery heating system, so that the
battery can work normally in low temperature environment. The
internal structure of the module is made of flame resistant
material, which greatly reduces the risk caused by heating. The
module has the advantages of light weight, strong stability, high
safety and long cycle life.
Product Advantages
1. Reliable structure: high anti-vibration structure strength;
2. Controllable process: no over welding and false welding to
ensure 100% no damage to the cell;
3. Safety design: high safety lithium iron phosphate material
system is adopted;
4. Good module stability: strict cell matching conditions, good
cell consistency;
5. Heating system: the module can be equipped with heating system
to make the battery work normally in low temperature environment.
