    TEU Forklift Lithium Ion Battery System 76.8V405Ah

    Ask Lasest Price
    Brand Name : EIKTO
    Model Number : 76.8V405Ah
    Certification : CE/UL/UN38.3/SDS
    Price : Negotiable
    Payment Terms : EFT
    Supply Ability : +9999
    Delivery Time : Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated
    • Product Details
    • Company Profile

    TEU Forklift Lithium Ion Battery System 76.8V405Ah

    TEU Forklift Lithium Ion Battery System 76.8V405Ah

    Technical Parameter


    NO.ProjectPerformanceRemarks
    1Dimensions1080mm*990mm*495mm/
    2Serial-parallel Connection3P24S/
    3Rated Capacity405Ah25±2℃,1.0C
    4Nominal Voltage76.8V/
    5Insulating Resistant≧50MΩ(DC500V)25±2℃
    6Weight≈1130KG/
    7Module Capacity31.104kWh/
    8Max. Charging Voltage86.4V/
    9Max. Constant Charging Current1C25±5℃
    10Discharge cut-off Voltage57.6V/
    11Max. Constant Discharging Current1C25±5℃
    12Standard Cycle Life≥4000 times 80%Capacity retention1C/1C 25℃

    Product Description


    1. Lithium battery iron phosphate lithium iron module 3.2v135Ah square aluminum shell heating system

    2. This product is a standard FCTP module of two EIKTO 12 core 3-layer lithium iron phosphate batteries, and YJT40110413-135Ah lithium iron phosphate batteries are formed in series and parallel.

    3. Laser welding is performed between batteries using iron connectors.

    4. The iron material is used as the shell to stabilize the module, which has high structural strength.

    5. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.


    Product Advantage


    1. Lithium battery iron phosphate lithium iron module 3.2v135Ah square aluminum shell heating system

    2. This product is a standard FCTP module of two EIKTO 12 core 3-layer lithium iron phosphate batteries, and YJT40110413-135Ah lithium iron phosphate batteries are formed in series and parallel.

    3. Laser welding is performed between batteries using iron connectors.

    4. The iron material is used as the shell to stabilize the module, which has high structural strength.

    5. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.

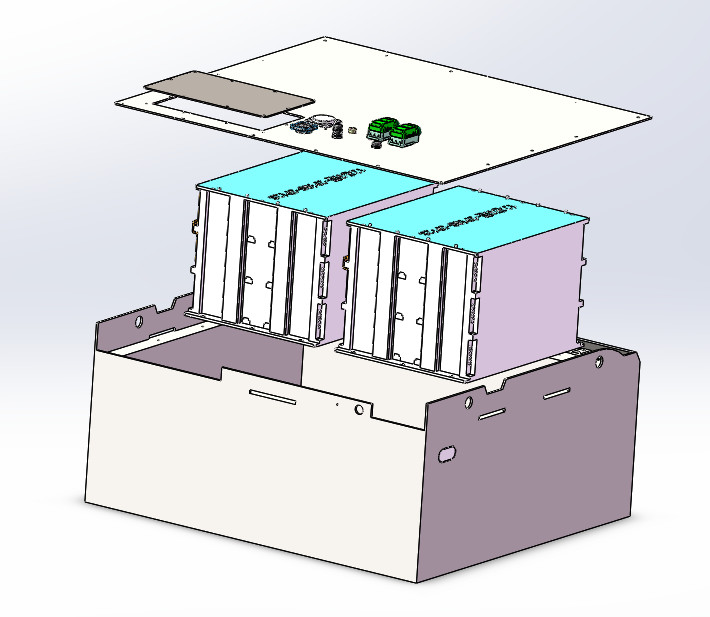

    Product Display


    TEU Forklift Lithium Ion Battery System 76.8V405Ah


    Application


    The products are widely used in the field of industrial vehicles

    TEU Forklift Lithium Ion Battery System 76.8V405AhTEU Forklift Lithium Ion Battery System 76.8V405AhTEU Forklift Lithium Ion Battery System 76.8V405Ah
