Battery Lithium Battery Lithium Iron Phosphate Square Aluminum
Shell EIKTO Power Sored energy 3.2V135Ah
Technical Parameters
| NO. | Item | Specification | Remark |
| 1 | Dimension | 40mm*110mm*401mm | Fig.1, 50%SOC,200kgf |
| 2 | Rated Capacity | 135Ah | 25±2℃,1.0C |
| 3 | Nominal Voltage | 3.2V | / |
| 4 | AC Initial Impedance | ≤0.6mΩ | 25±2℃ AC 1KHz measured |
| 5 | Cell Weight | ≈3350g | / |
| 6 | Energy Density | 129 | / |
| 7 | Energy Density | 239 | / |
| 8 | Max Charging Voltage | 3.6V | / |
| 9 | Maximum Continuous Charging Current | 1.5C | 25±5℃ |
| 10 | Discharge Cut-off Voltage | 2.5V | / |
| 11 | Max. Continuous Discharging Current | 1.5C | 25±5℃ |
| 12 | Standard cycle life | ≥4000times 80%Capacity retention | 1C/1C 25℃ |
Product Description
1.terminal post heads on both sides of the battery.
2.CE/UL certified.
3.Winding process of anode and cathode electrode slice.
4.3000 charge & discharge cycles.
5.Lithium iron phosphate is the cathode material.
Product Advantages
1.3.2V135Ah square lithium iron phosphate battery.
2.EIKTO Lithium iron phosphate battery, with the structure of
terminal post on both sides, conducive to heat dissipation, lower
temperature rise and more uniform.
3.The battery adopts winding process with high energy density.
4.Energy saving and environmental friendly, pollution-free, no
mercury, cadmium and other heavy metal harmful substances.
5.Technology of slowing self discharge to reduce power loss.
6.The charging speed is fast with a special charger, the battery
can be fully charged within 40 minutes.

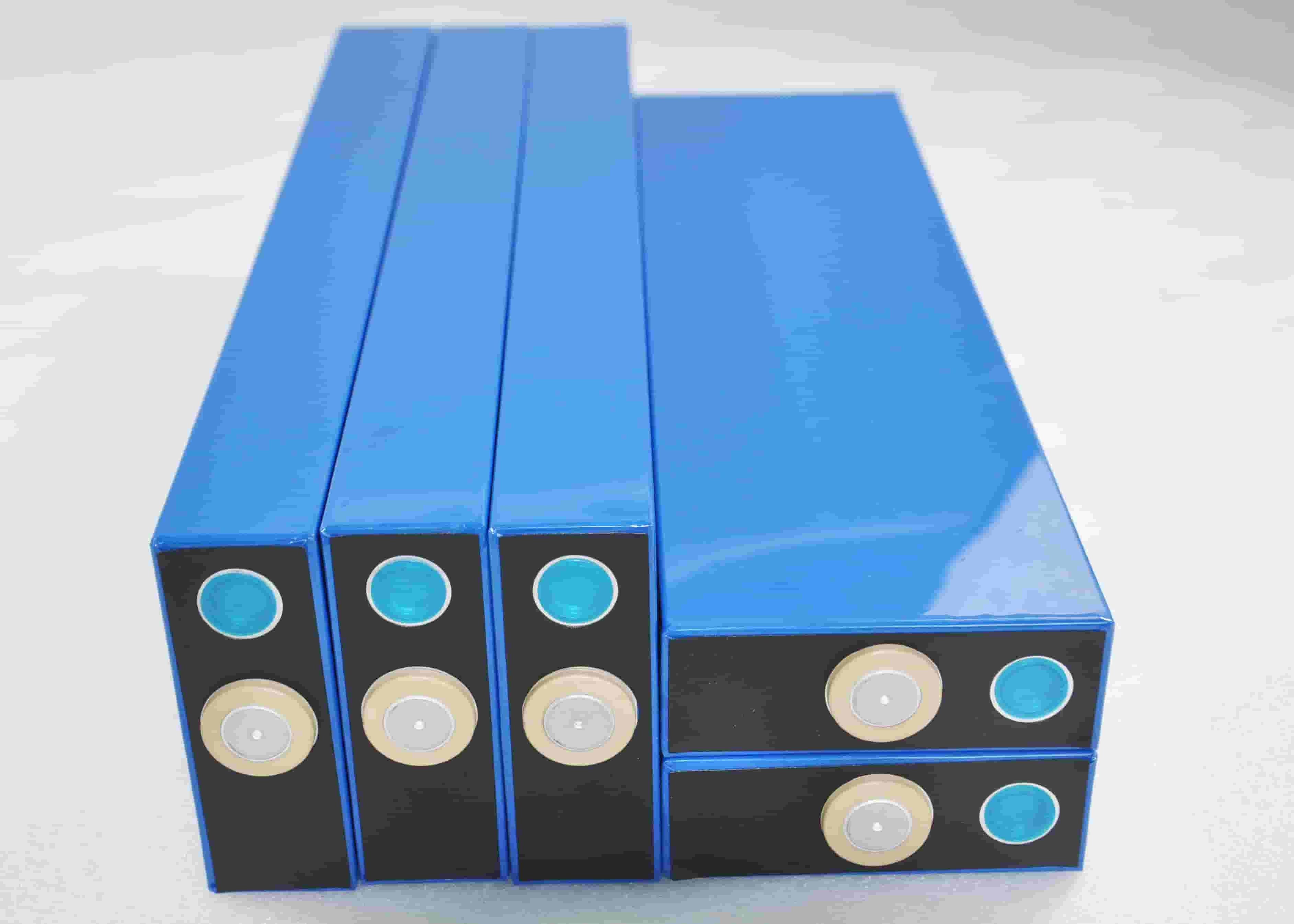

Samples Show
Application
Packaging & Delivery
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving
the product, please feel free to contact us. Problems would be
solved for you immediately.
4. Sophisticated and professional logistic agent.
Competitive Advantages
1. Our products have been exported to Germany, Norway, Poland,
Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia,
Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick
delivery.
